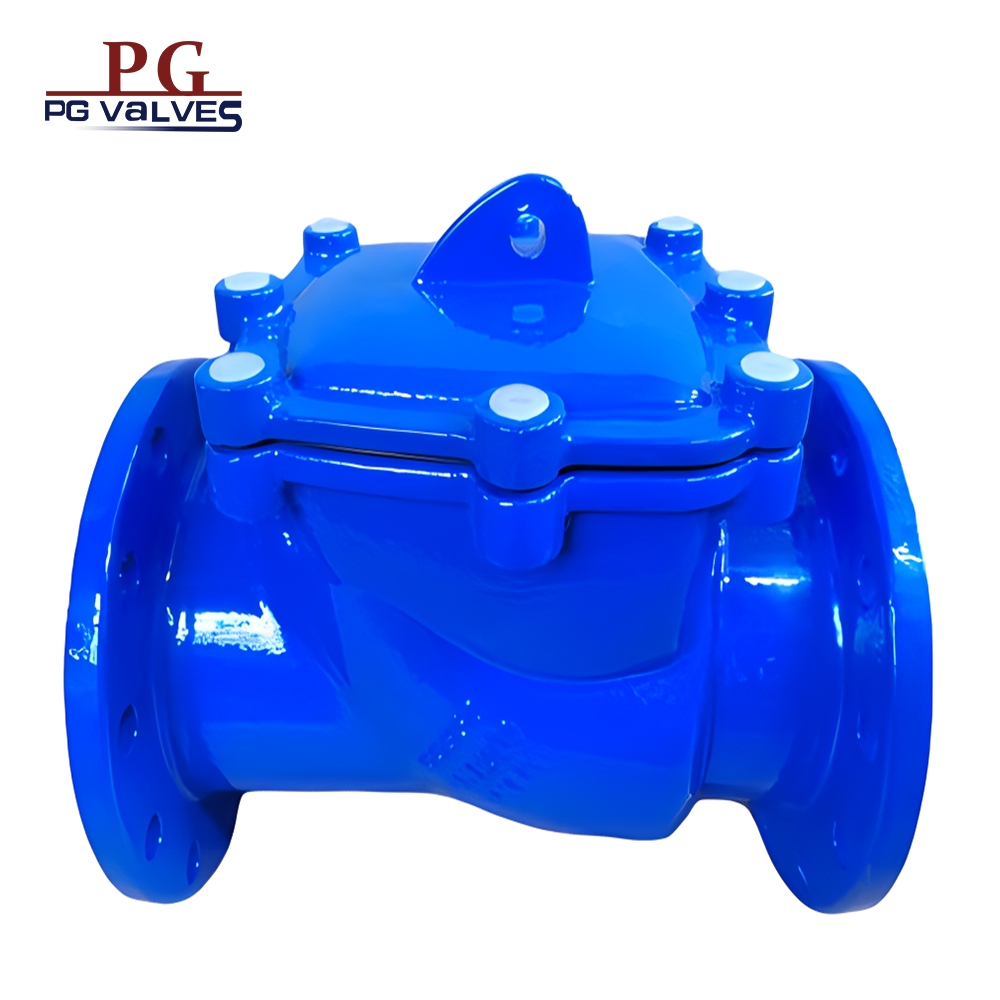

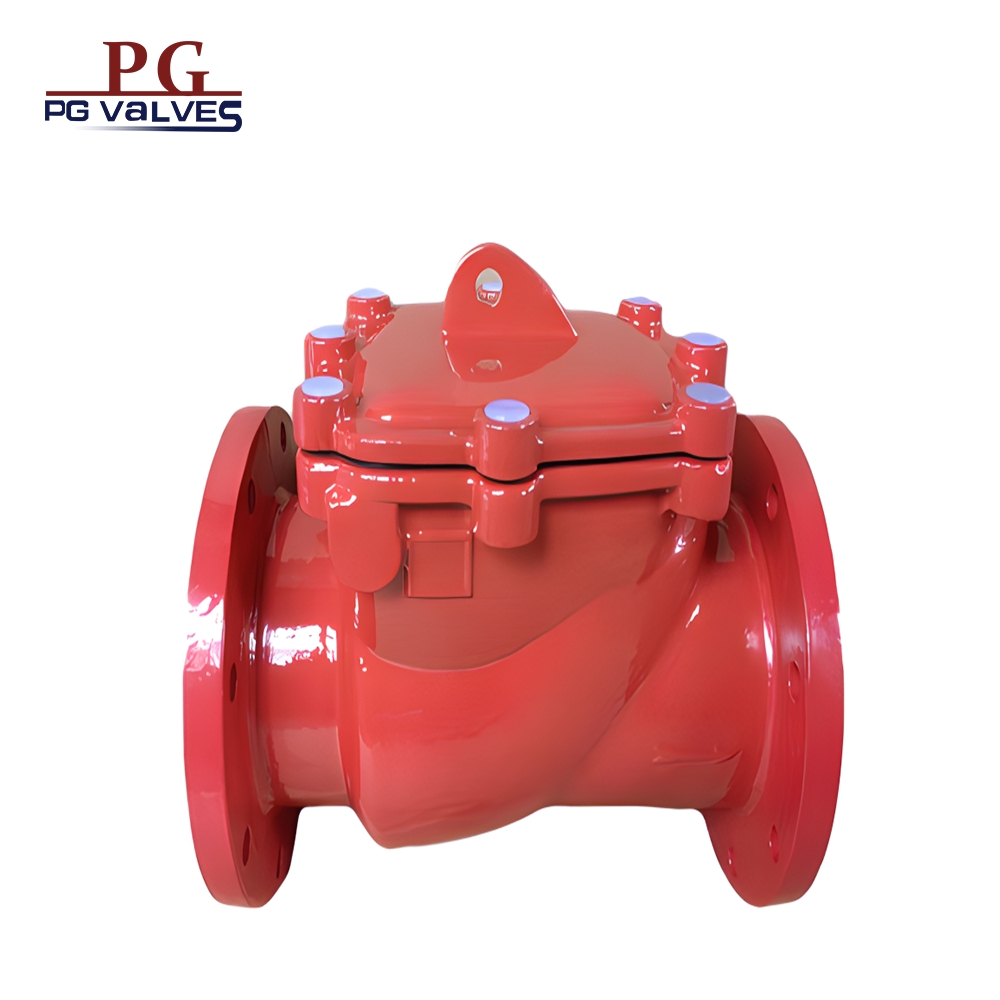

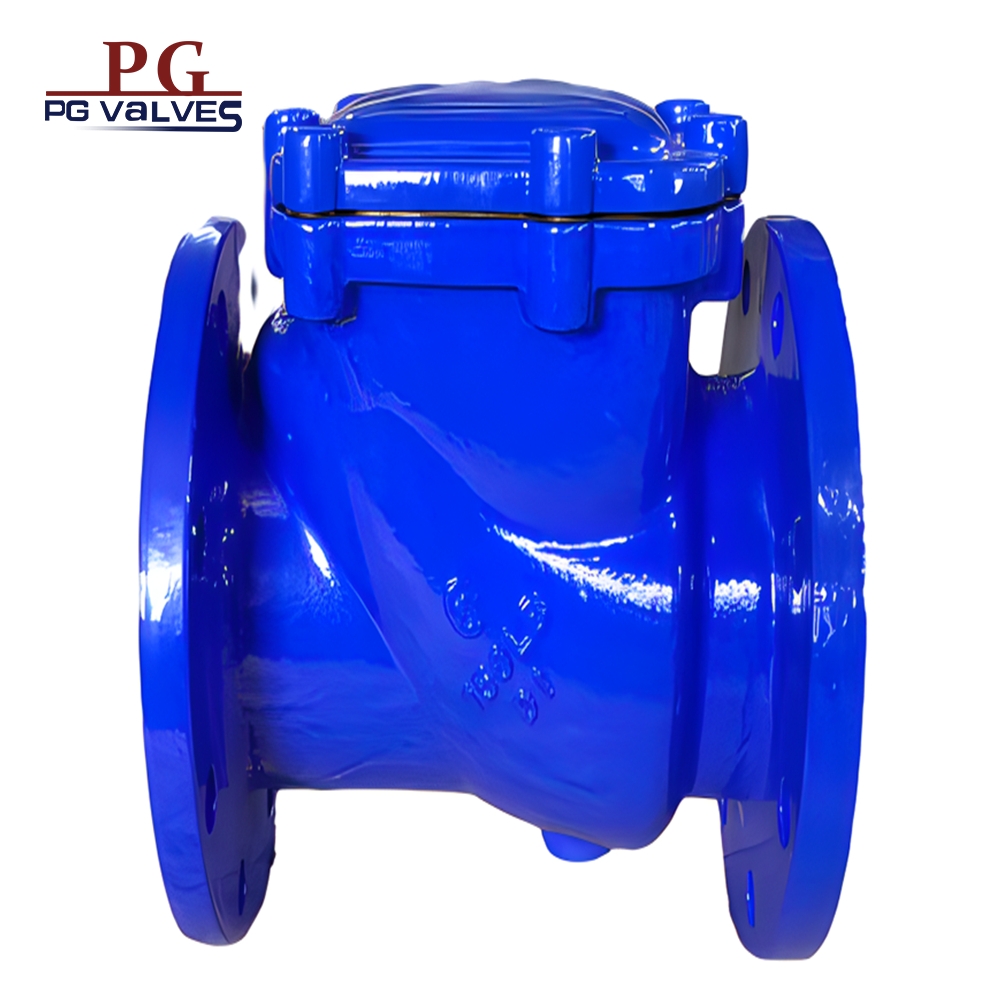

Application
1、Face to face is according toDIN EN558-1
2、Flange drilled is according to DIN EN1092-2
3、Working temperature:-20～80℃
4、Working pressure:PN10-PN16.
Product Description
Application
1、Face to face is according toDIN EN558-1
2、Flange drilled is according to DIN EN1092-2
3、Working temperature:-20～80℃
4、Working pressure:PN10-PN16.

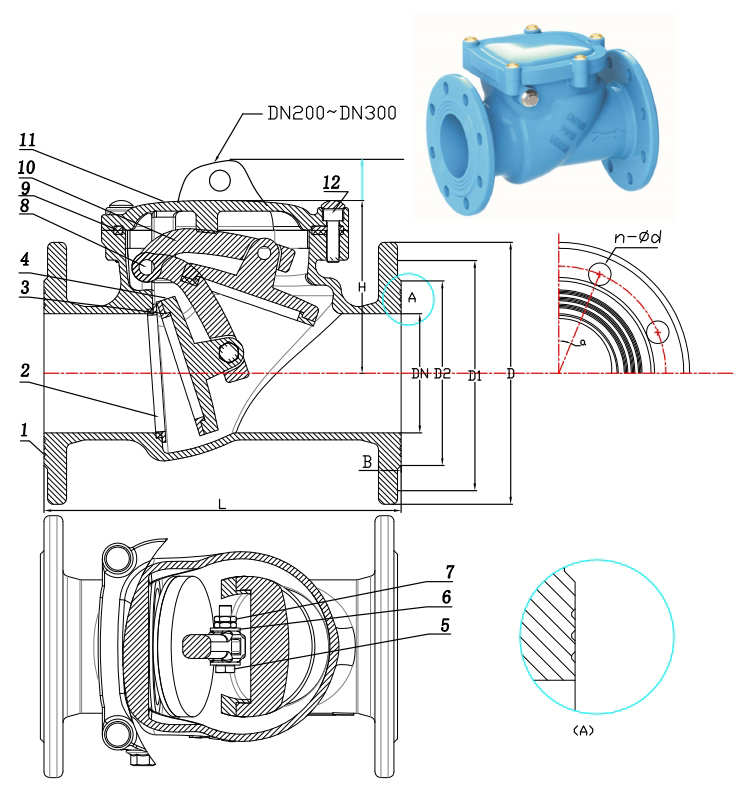

| 12 | DIN912 | Bolt | X | Q235 | ||||||||||||
| 11 | H44-T16-08 | Bonnet | 1 | GGG50 | ||||||||||||
| 10 | H44-T16-07 | Rocker arm | 1 | GGG50 | ||||||||||||
| 9 | H44-T16-06 | Seal gasket | 1 | NBR | ||||||||||||
| 8 | H44-T16-05 | Pin | 1 | 2CR13 | ||||||||||||
| 7 | DIN934 | Nut | 2 | ss304 | ||||||||||||
| 6 | DIN126 | Gasket | 2 | ss304 | ||||||||||||
| 5 | DIN931 | Bolt | 1 | ss304 | ||||||||||||
| 4 | H44-T16-04 | Disc | 1 | GGG50 | ||||||||||||
| 3 | H44-T16-03 | Seal ring | 1 | Brass(Hpb59-1) | ||||||||||||
| 2 | H44-T16-02 | Valve seat | 1 | Brass(Hpb59-1) | ||||||||||||
| 1 | H44-T16-01 | Body | 1 | GGG50 | ||||||||||||
| DN | L | D | D1 | D2 | B | n-ød | H | |||||||
| PN10 | PN16 | PN10 | PN16 | PN10 | PN16 | PN10 | PN16 | |||||||
| 40 | 180 | 150 | 150 | 110 | 110 | 84 | 84 | 19 | 4-ø19 | 4-ø19 | 115 | |||
| 50 | 200 | 165 | 165 | 125 | 125 | 99 | 99 | 19 | 4-ø19 | 4-ø19 | 115 | |||
| 65 | 240 | 185 | 185 | 145 | 145 | 118 | 118 | 19 | 4-ø19 | 4-ø19 | 118 | |||
| 80 | 260 | 200 | 200 | 160 | 160 | 132 | 132 | 19 | 8-ø19 | 8-ø19 | 130 | |||
| 100 | 300 | 220 | 220 | 180 | 180 | 156 | 156 | 19 | 8-ø19 | 8-ø19 | 145 | |||
| 125 | 350 | 250 | 250 | 210 | 210 | 184 | 184 | 19 | 8-ø19 | 8-ø19 | 160 | |||
| 150 | 400 | 285 | 285 | 240 | 240 | 211 | 211 | 19 | 8-ø23 | 8-ø23 | 185 | |||
| 200 | 500 | 340 | 340 | 295 | 295 | 266 | 266 | 20 | 8-ø23 | 12-ø23 | 285 | |||
| 250 | 600 | 405 | 405 | 350 | 355 | 319 | 319 | 22 | 12-ø23 | 12-ø28 | 325 | |||
| 300 | 700 | 460 | 460 | 400 | 410 | 370 | 370 | 25 | 12-ø23 | 12-ø28 | 390 | |||

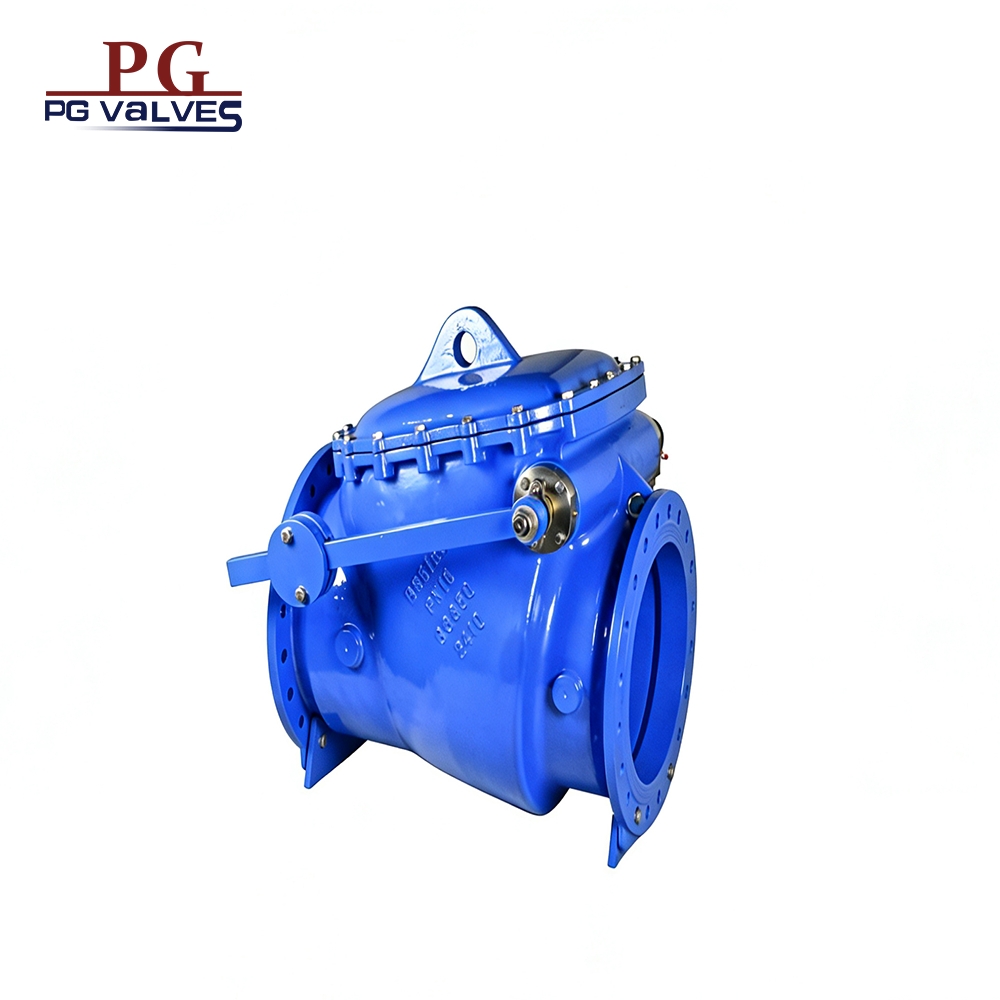

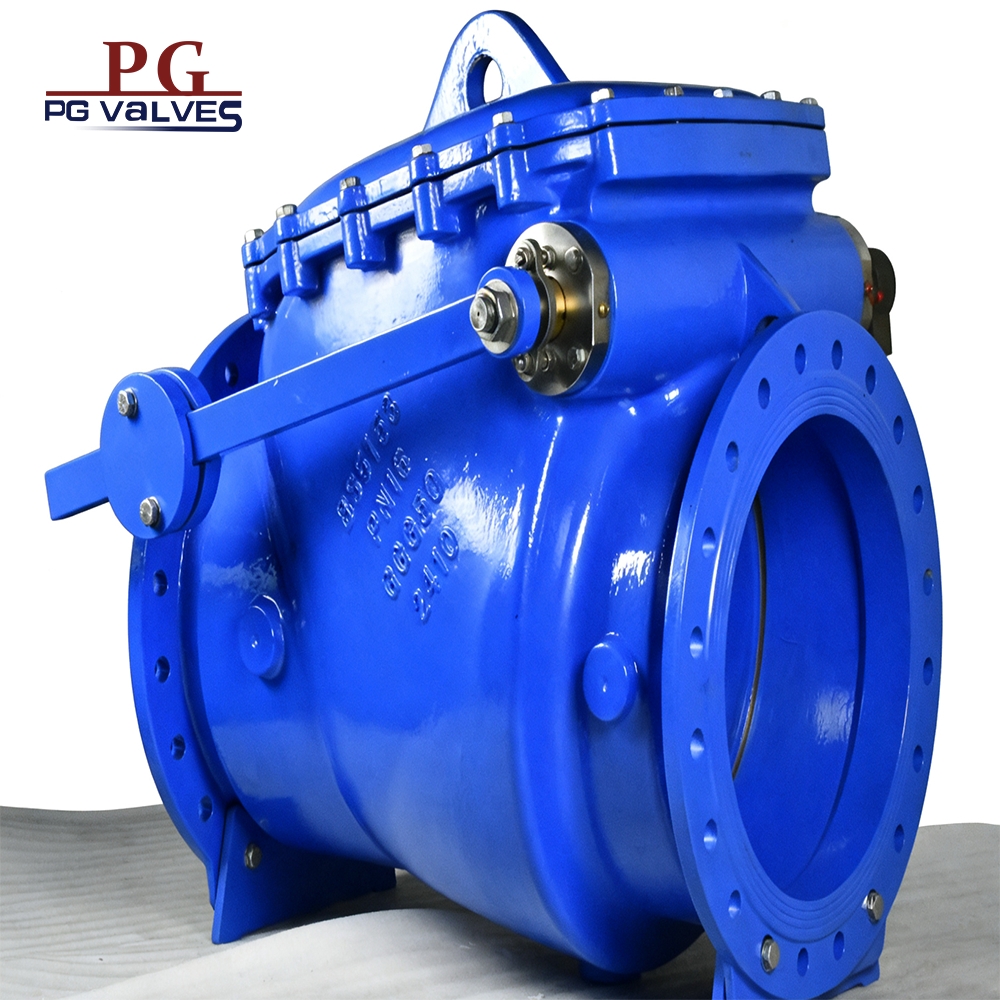

Application
1、Face to face is according to EN558-1
2、Flange drilled is according to DIN EN1092-2
3、Working temperature:-20～80℃,
4、Working pressure:PN10-PN16.

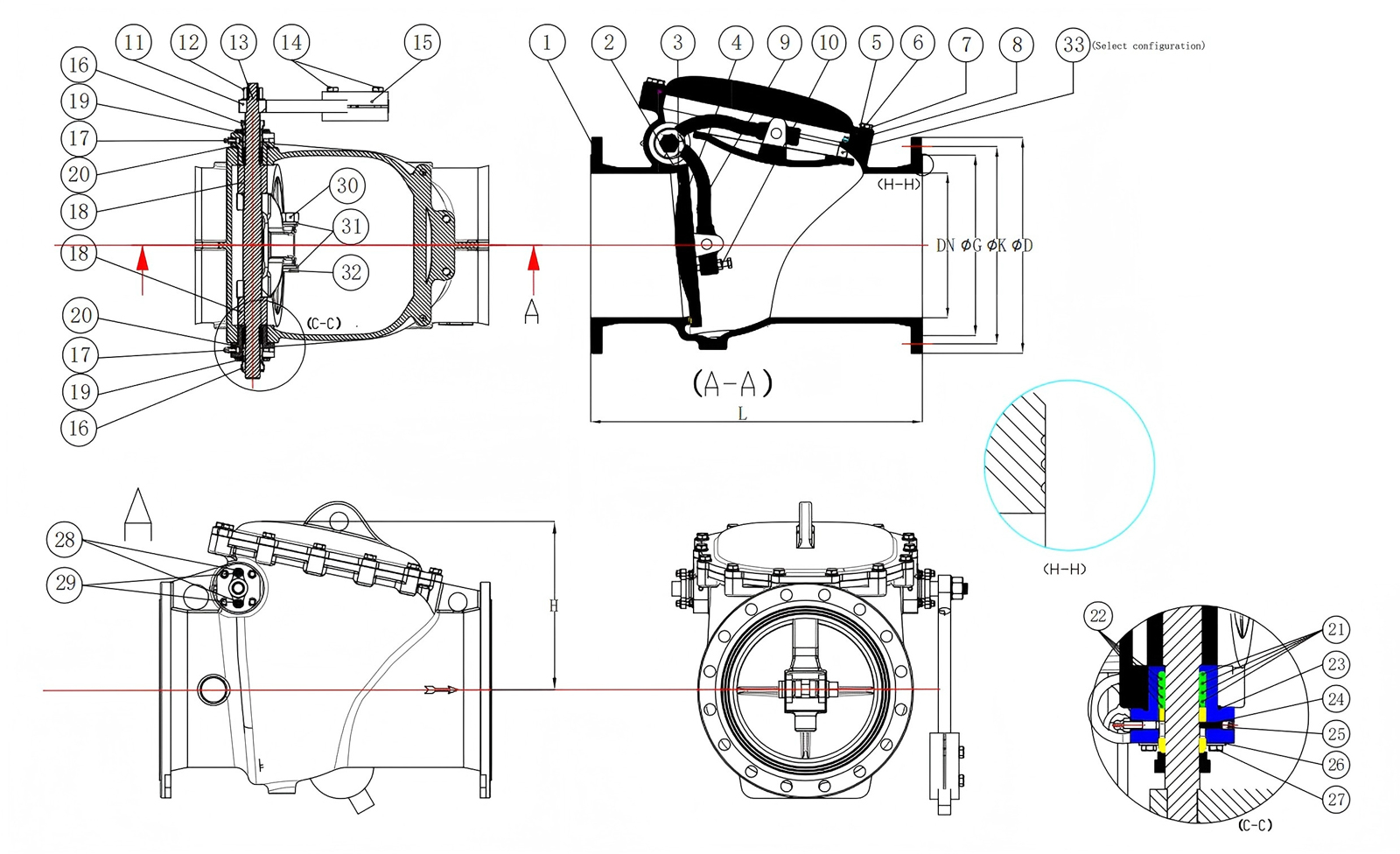

| 33 | Shock absorber | POLYURETHANE |
| 32 | Pin | 2CR13 |
| 31 | Gasket | SS304 |
| 30 | Nut | SS304 |
| 29 | Double screw | SS304 |
| 28 | Nut | SS201 |
| 27 | Bolt | SS304 |
| 26 | Gasket | SS304 |
| 25 | Plug screw | Carbon steel |
| 24 | Pin | SS304 |
| 23 | "0"ring | EPDM |
| 22 | Packing | PTFE |
| 21 | "0"ring | EPDM |
| 20 | Shaft seat | 2CR13 |
| 19 | Shaft sleeve | Bronze |
| 18 | Stop collar | NYLON |
| 17 | Glib | Brass |
| 16 | Mould weight | 2CR13 |
| 15 | Clump weight | Carbon steel |
| 14 | Bolt | SS304 |
| 13 | Rotation axis | 2CR13 |
| 12 | Nut | SS304 |
| 11 | Bumper bar | Carbon steel |
| 10 | Bolt+Gasket | SS304 |
| 9 | Rocker arm | GGG50 |
| 8 | Bonnet | GGG50 |
| 7 | Seal gasket | EPDM |
| 6 | Gasket | SS304 |
| 5 | Bolt | SS304 |
| 4 | Disc | GGG50 |
| 3 | Seal ring | Bronze |
| 2 | Valve seat | Bronze |
| 1 | Body | GGG50 |
| DH | L | D | K | G | B | n-d | H | ||||
| PN10 | PN16 | PN10 | PN16 | PN10 | PN16 | PN10 | PN16 | ||||
| 350 | 787 | 520 | 520 | 460 | 470 | 429 | 429 | 26.5 | 16-23 | 16-28 | 407 |
| 400 | 914 | 580 | 580 | 515 | 525 | 480 | 480 | 28 | 16-Φ28 | 16-①31 | 459 |
| 450 | 965 | 640 | 640 | 565 | 585 | 530 | 548 | 30 | 20-28 | 20-31 | 531 |
| 500 | 978 | 715 | 715 | 620 | 650 | 582 | 609 | 32 | 20-28 | 20-34 | 531 |
| 600 | 1295 | 840 | 840 | 725 | 770 | 682 | 720 | 36 | 20-Ø31 | 20-37 | 590 |
