Product Description
| DN | OUTLINE mm | END FLANGE EN1092-2 PN10/16 mm | |||||||||||
| BS5153 | DIN-F6 | B | f | H | PN10 | PN16 | |||||||
| L | D | K | G | n-d | D | K | G | n-d | |||||
| 50 | 203 | 200 | 19 | 3 | 95 | 165 | 125 | 99 | 4-019 | 165 | 125 | 99 | 4-Ø19 |
| 65 | 216 | 240 | 19 | 3 | 100 | 185 | 145 | 118 | 4-019 | 185 | 145 | 118 | 4-Q19 |
| 80 | 241 | 260 | 19 | 3 | 105 | 200 | 160 | 132 | 8-819 | 200 | 160 | 132 | 8-Q19 |
| 100 | 292 | 300 | 19 | 3 | 115 | 220 | 180 | 156 | 8-219 | 220 | 180 | 156 | 8-Q19 |
| 125 | 330 | 350 | 19 | 3 | 145 | 250 | 210 | 184 | 8-819 | 250 | 210 | 184 | 8-Q19 |
| 150 | 356 | 400 | 19 | 3 | 155 | 285 | 240 | 211 | 8-023 | 285 | 240 | 211 | 8-Q23 |
| 200 | 495 | 500 | 20 | 3 | 250 | 340 | 295 | 266 | 8-023 | 340 | 295 | 266 | 12-023 |
| 250 | 622 | 600 | 22 | 3 | 300 | 405 | 350 | 319 | 12-Ø23 | 405 | 355 | 319 | 12-028 |
| 300 | 698 | 700 | 24.5 | 4 | 330 | 460 | 400 | 370 | 12-023 | 460 | 410 | 370 | 12-028 |
| 350 | 787 | —— | 26.5 | 4 | —— | 520 | 460 | 429 | 16-023 | 520 | 470 | 429 | 16-028 |
| 400 | 914 | —— | 28 | 4 | —— | 580 | 515 | 480 | 16-028 | 580 | 525 | 480 | 16-Q31 |
| 450 | 965 | —— | 30 | 4 | —— | 640 | 565 | 530 | 20-028 | 640 | 585 | 548 | 20-031 |
| 500 | 1067 | —— | 31.5 | 4 | —— | 715 | 620 | 582 | 20-028 | 715 | 650 | 609 | 20-Ø34 |
| 600 | 1219 | —— | 36 | 5 | —— | 840 | 725 | 682 | 20-031 | 840 | 770 | 720 | 20-037 |
| Design | BS5153 | ||
| Flange | EN 1092-2 | ||
| Face To Face | BS 5153/DIN-F6 | ||
| Tests | EN 12266 | ||
| Reference Standard | |||
| Drive Form | Self-motion | ||
| Medium | Water | ||
| Temperature | 0-80℃ | ||
| Seal Test | 11/18 Bar | ||
| Body Test | 15/24 Bar | ||
| PN | 10/16 Bar | ||
| DN | DN50-600 | ||
| Main Technical Parameters | |||
| 9 | O Ring | NBR | |
| 8 | Plug | AISI304 STAINLESS STEEL | |
| 7 | Flat Washer | AISI304 STAINLESS STEEL | |
| 6 | Bolt | AISI304 STAINLESS STEEL | |
| 5 | Shaft Pin | AISI304 STAINLESS STEEL | |
| 女 | Bonnet | DUCTILE IRON | |
| 3 | Bonnet Gasket | NBR | |
| 2 | Disc | EPDM+WCB | |
| 1 | Body | DUCTILE IRON | |
| No. | Name | Materials | |

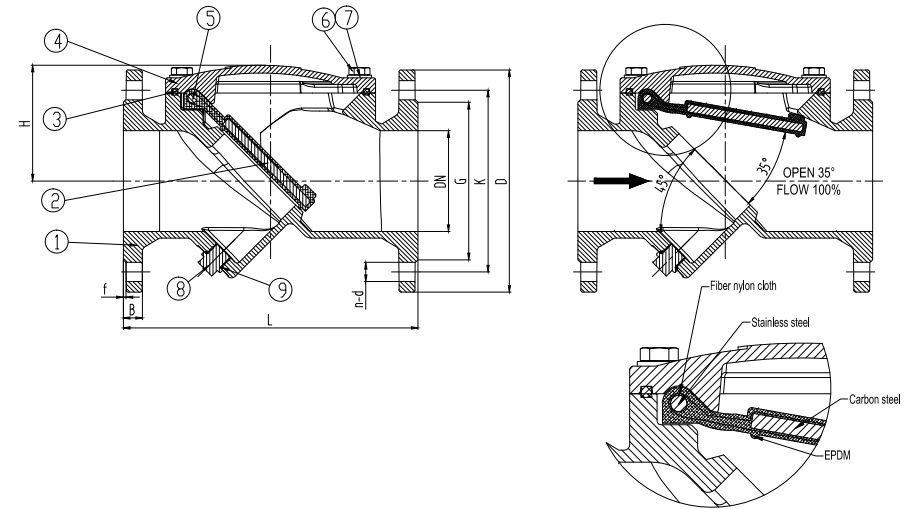

| Assembly Drawing | PG-VAL | ||

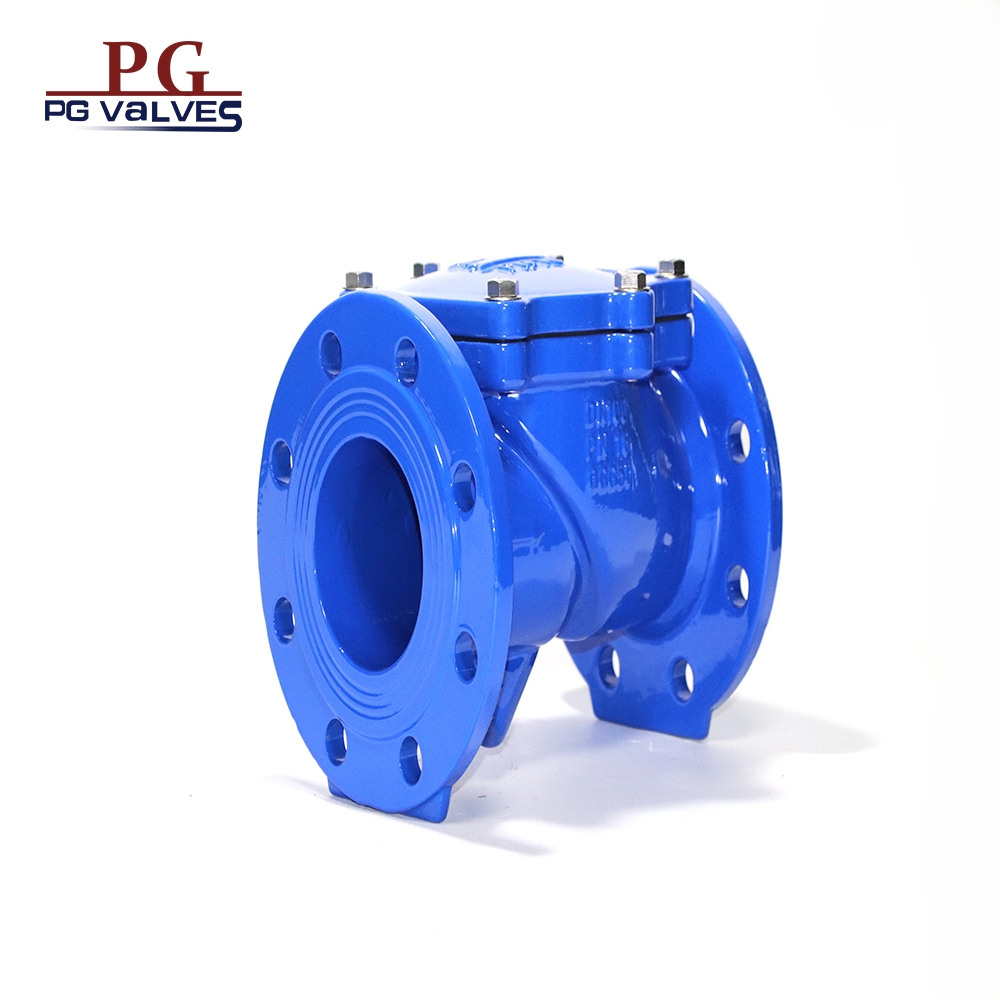

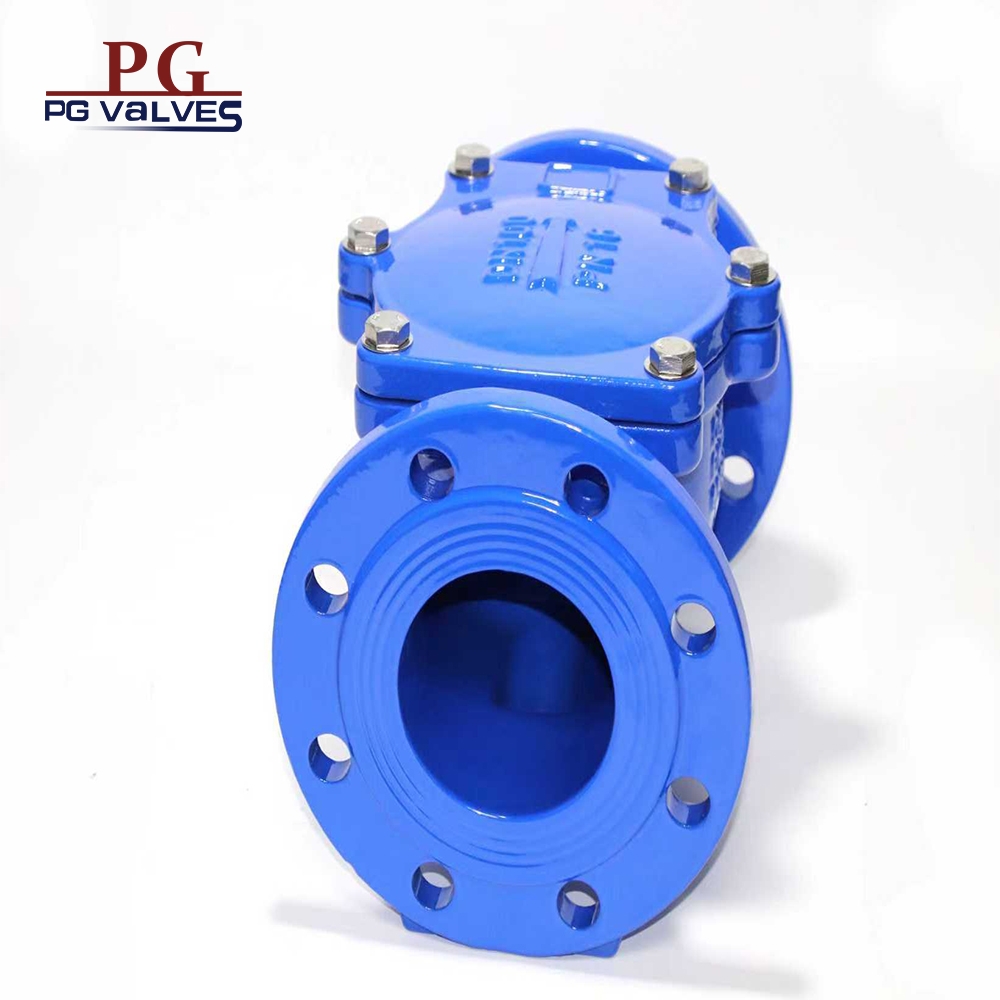

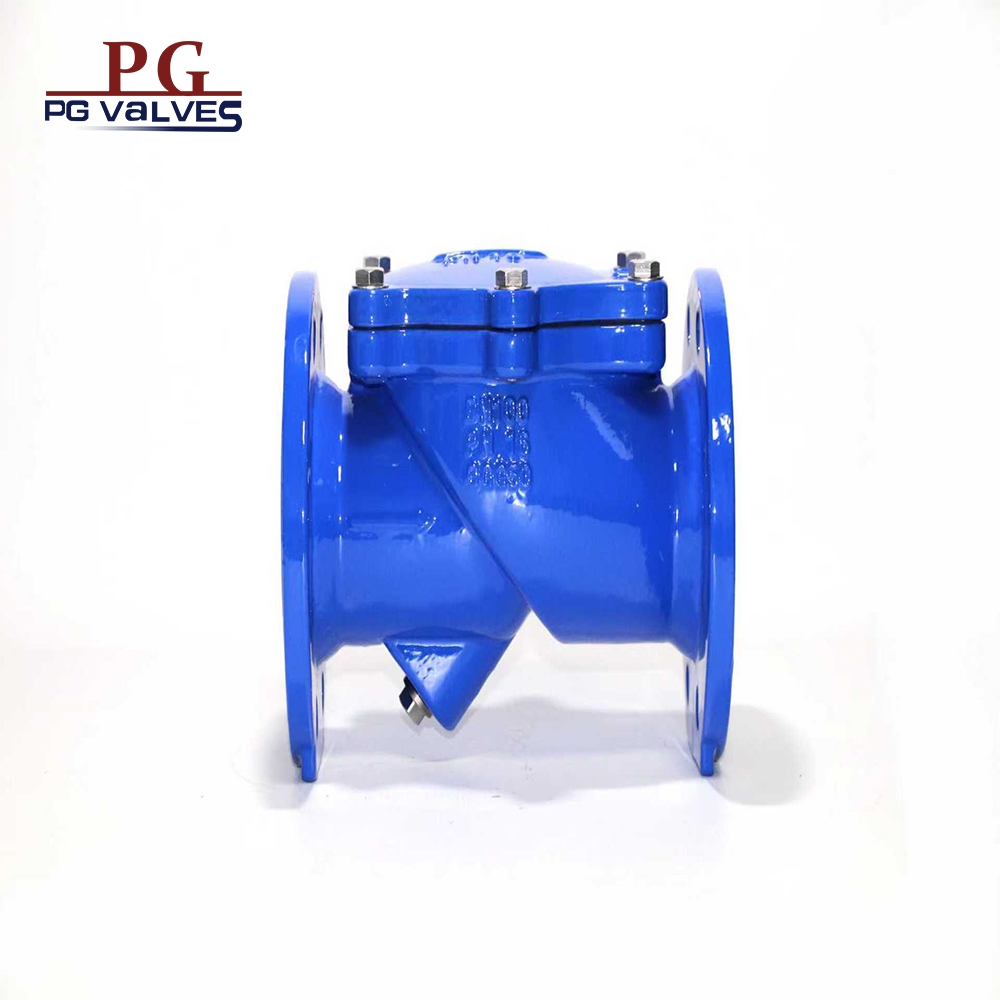

| Rubber Disc Check Valve |
|||
