Full lined PTFE Butterfly Valve
Product Description

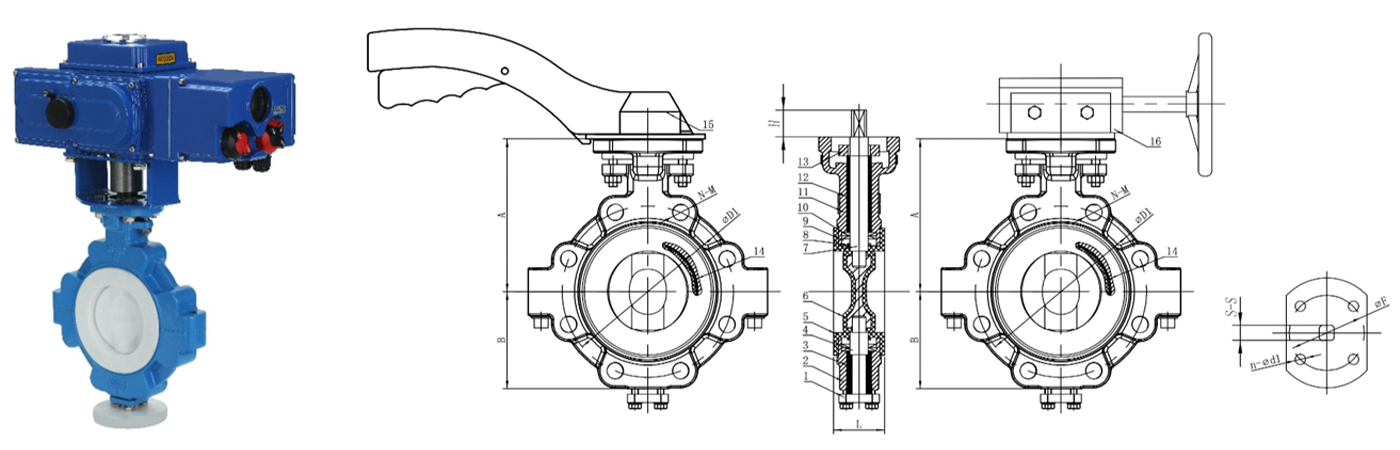

Split Full Lined PTFE Lug Butterfly Valve DN50-DN600
| Specification | ||||||||
| Nominal Pressure | 1.0 | MPa | ||||||
| Shell Test Pressure(Hydraulic) | 1.5 | |||||||
| Seal Test Pressure(Hydraulic) | 1.1 | |||||||
| Design Tempreture | -10℃~100℃ | |||||||
| Applicable Media | Water,0il,Gas | |||||||
| Executive Standard | ||||||||
| Design &Manufacture | API609 | |||||||
| Face to Face | API609 | |||||||
| End Flanage | EN1092-2 PN10 | |||||||
| Inspection &Test | API598 | |||||||
| 16 | Wormgear | DI | ||||
| 15 | Lever | Aluminium | ||||
| 14 | Gasket | Silicone | ||||
| 13 | Gland | DI/WCB/CF8/CF8M | ||||
| 12 | Upper sleeve | Q235/SS304 | ||||
| 11 | Upper body | DI/CF8/CF8M | ||||
| 10 | Disc spring | Spring steel | ||||
| 9 | Junk ring | Q235/SS304 | ||||
| 8 | 0 ring | EPDM | ||||
| 7 | Upper shaft | SS410/SS304/SS316 | ||||
| 6 | Disc | WCB+PTFE/CF8+PTFE | ||||
| 5 | Seat | PTFE | ||||
| 4 | Bottom shaft | SS410/SS304/SS316 | ||||
| 3 | Bottom sleeve | Q235/SS304 | ||||
| 2 | Bottom body | DI/WCB/CF8/CF8M | ||||
| 1 | Bottom cap | DI/WCB/CF8/CF8M | ||||
| NO. | Name | Material | Remarks | |||
Main Dimensions
| DN | INCH | L | A | B | S | H | ISO5211 | PN10 | PN16 | ANSI 150 | |||||||||||
| mm | in | Top flange | øF | n-od1 | øD1 | N-M | øD1 | N-M | øD1 | N-M | |||||||||||
| 50 | 2 | 43 | 122 | 71 | 11 | 25 | F07 | 70 | 4-10 | 125 | 4-M16 | 125 | 4-M16 | 120.5 | 4-5/8"-11UNC | ||||||
| 65 | 2.5 | 46 | 132 | 81 | 11 | 25 | F07 | 70 | 4-10 | 145 | 4-M16 | 145 | 4-M16 | 139.5 | 4-5/8"-11UNC | ||||||
| 80 | 3 | 46 | 142 | 90 | 14 | 25 | F07 | 70 | 4-10 | 160 | 8-M16 | 160 | 8-M16 | 152.5 | 4-5/8"-11UNC | ||||||
| 100 | 4 | 52 | 158 | 105 | 14 | 28 | F07 | 70 | 4-10 | 180 | 8-M16 | 180 | 8-M16 | 190.5 | 8-5/8"-11UNC | ||||||
| 125 | 5 | 56 | 172 | 122 | 14 | 28 | F07 | 70 | 4-10 | 210 | 8-M16 | 210 | 8-M16 | 215.9 | 8-3/4"-10UNC | ||||||
| 150 | 6 | 56 | 190 | 136 | 17 | 28 | F10 | 102 | 4-12 | 240 | 8-M20 | 240 | 8-M20 | 241.3 | 8-3/4"-10UNC | ||||||
| 200 | 8 | 60 | 225 | 168 | 22 | 35 | F10 | 102 | 4-12 | 295 | 8-M20 | 295 | 12-M20 | 298.5 | 8-3/4"-10UNC | ||||||
| 250 | 10 | 68 | 258 | 202 | 22 | 40 | F12 | 125 | 4-14 | 350 | 12-M20 | 355 | 12-M24 | 362.0 | 12-7/8"-9UNC | ||||||
| 300 | 12 | 78 | 293 | 236 | 22 | 40 | F14 | 140 | 4-18 | 400 | 12-M20 | 410 | 12-M24 | 431.8 | 12-7/8"-9UNC | ||||||
| 350 | 14 | 78 | 335 | 263 | 27 | 40 | F14 | 140 | 4-18 | 460 | 16-M20 | 470 | 16-M24 | 476.3 | 12-1"-8UNC | ||||||
| 400 | 16 | 102 | 368 | 320 | 27 | 50 | F14 | 140 | 4-18 | 515 | 16-M24 | 525 | 16-M27 | 539.8 | 16-1"-8UNC | ||||||
| 450 | 18 | 103 | 420 | 340 | 32 | 50 | F14 | 140 | 4-18 | 565 | 20-M24 | 585 | 20-M27 | 577.9 | 16-11/8"-7UNC | ||||||
| 500 | 20 | 127 | 452 | 367 | 32/36 | 60 | F16 | 165 | 4-22 | 620 | 20-M24 | 650 | 20-M30 | 635 | 20-11/8"-7UNC | ||||||
| 600 | 24 | 154 | 532 | 428 | 40 | 70 | F25 | 254 | 8-18 | 725 | 20-M27 | 770 | 20-M33 | 749.3 | 20-11/4-7UNC | ||||||
