Full lined PTFE Butterfly Valve
Product Description

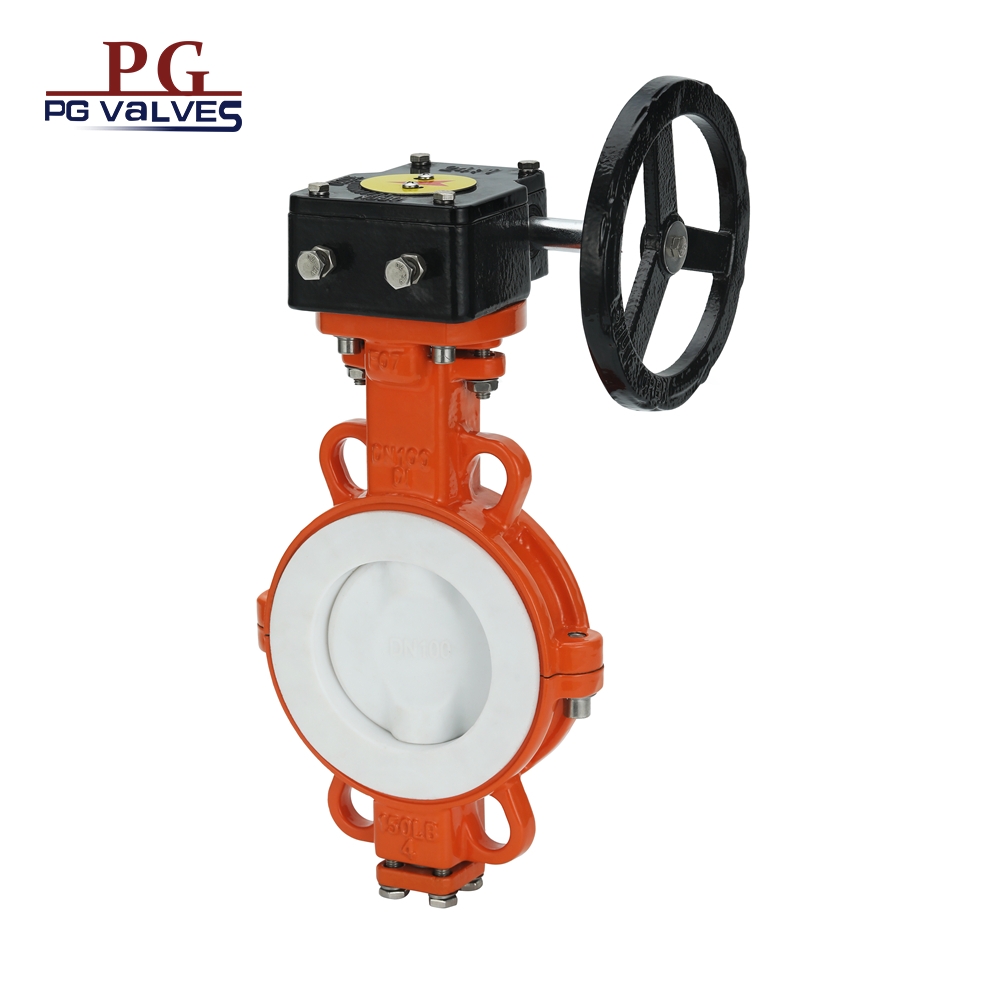

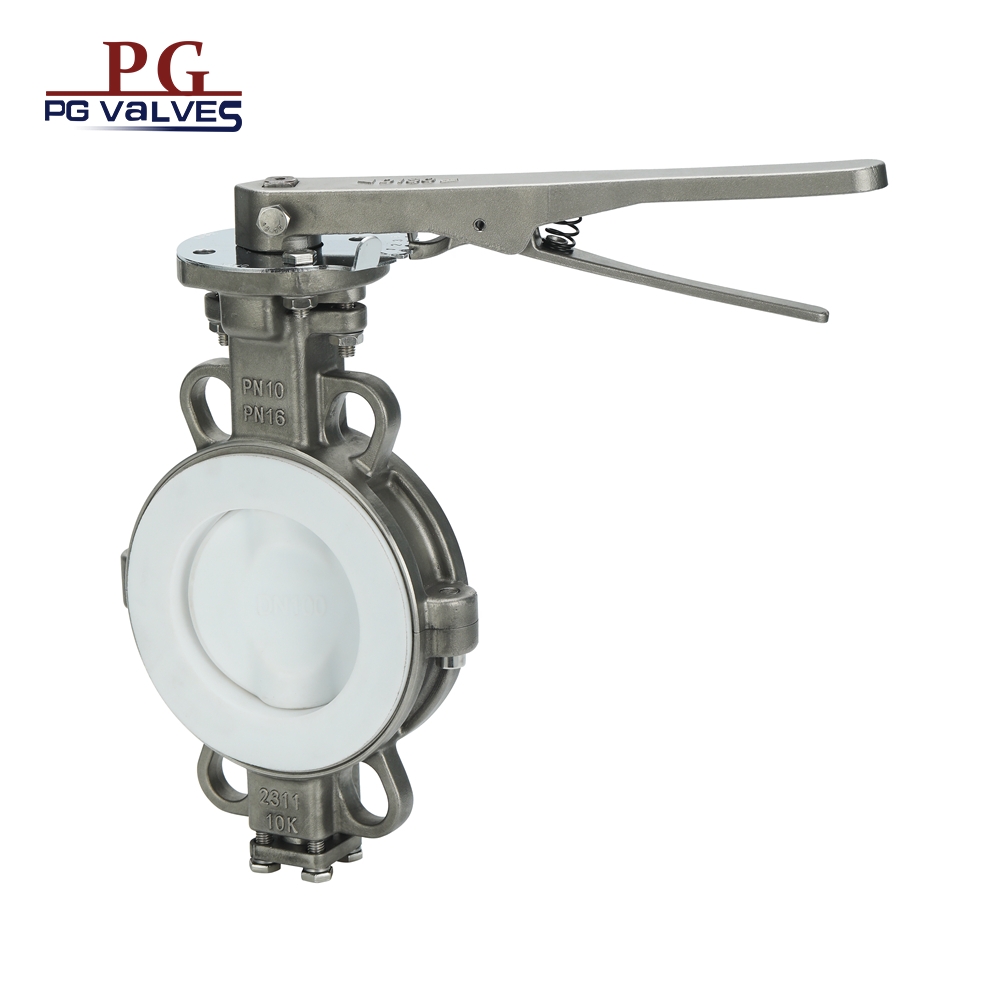

Split Full Lined PTFE Wafer Butterfly Valve DN50-DN600
| Specification | ||||||||||
| Nominal Pressure | 1.0 | MPa | ||||||||
| Shell Test Pressure(Hydraulic) | 1.5 | |||||||||
| Seal Test Pressure(Hydraulic) | 1.1 | |||||||||
| Design Tempreture | -10℃~100℃ | |||||||||
| Applicable Media | Water,Oil,Gas | |||||||||
| Executive Standard | ||||||||||
| Design &Manufacture | API609 | |||||||||
| Face to Face | API609 | |||||||||
| End Flanage | EN1092-1 PN10 | |||||||||
| Inspection &Test | API598 | |||||||||
| 16 | Lever | Aluminium | |||||||
| 15 | Wormgear | DI | |||||||
| 14 | Gasket | Silicone | |||||||
| 13 | Gland | DI/WCB/CF8/CF8M | |||||||
| 12 | Upper sleeve | Q235/SS304 | |||||||
| 11 | Upper body | DI/WCB/CF8/CF8M | |||||||
| 10 | Disc spring | Spring steel | |||||||
| 9 | Junk ring | Q235/SS304 | |||||||
| 8 | 0 ring | EPDM | |||||||
| 7 | Upper shaft | SS410/SS304/S316 | |||||||
| 6 | Disc | WCB+PTFE/CF8+PTFE | |||||||
| 5 | Seat | PTFE | |||||||
| 4 | Bottom shaft | SS410/SS304/SS316 | |||||||
| 3 | Bottom sleeve | Q235/SS304 | |||||||
| 2 | Bottom body | DI/WCB/CF8/CF8M | |||||||
| 1 | Bottom cap | DI/WCB/CF8/CF8M | |||||||
| NO. | Name | Material | Remarks | ||||||

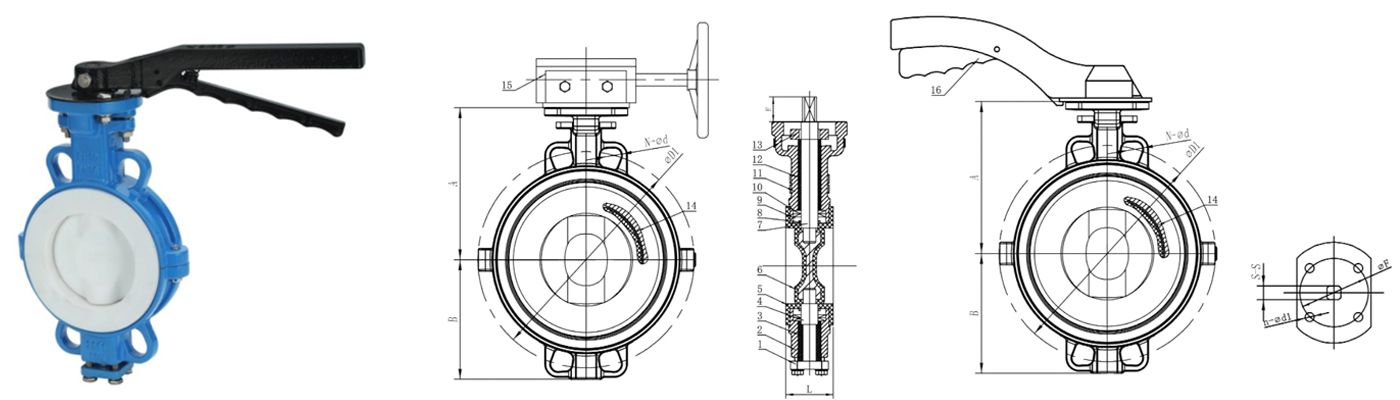

Main Dimensions
| DN | INCH | L | A | B | S | H | ISO5211 | ANSI 150 | PN10 | PN16 | |||||||||||||||||
| mm | in | Top Flange | øF | n-ød1 | øD1 | N-ød | øD1 | N-ød | øD1 | N-ød | |||||||||||||||||
| 50 | 2 | 43 | 122 | 71 | 11 | 25 | F07 | 70 | 4-10 | 120.7 | 4-ø19 | 125 | 4-ø19 | 125 | 4-ø19 | ||||||||||||
| 65 | 2.5 | 46 | 132 | 81 | 11 | 25 | F07 | 70 | 4-x10 | 139.7 | 4-ø19 | 145 | 4-ø19 | 145 | 4-ø19 | ||||||||||||
| 80 | 3 | 46 | 142 | 90 | 14 | 25 | F07 | 70 | 4-×10 | 152.4 | 4-19 | 160 | 8-ø19 | 160 | 8-ø19 | ||||||||||||
| 100 | 4 | 52 | 158 | 105 | 14 | 28 | F07 | 70 | 4-ø10 | 190.5 | 8-ø19 | 180 | 8-ø19 | 180 | 8-ø19 | ||||||||||||
| 125 | 5 | 56 | 172 | 122 | 14 | 28 | F07 | 70 | 4-ø10 | 215.9 | 8-ø22 | 210 | 8-ø19 | 210 | 8-19 | ||||||||||||
| 150 | 6 | 56 | 190 | 136 | 17 | 28 | F10 | 102 | 4-ø12 | 241.3 | 8-ø22 | 240 | 8-ø23 | 240 | 8-ø23 | ||||||||||||
| 200 | 8 | 60 | 225 | 168 | 17 | 35 | F10 | 102 | 4-ø12 | 298.5 | 8-ø22 | 295 | 8-ø23 | 295 | 12-ø23 | ||||||||||||
| 250 | 10 | 68 | 258 | 202 | 22 | 40 | F10 | 102 | 4-x12 | 362 | 12-ø26 | 350 | 12-x23 | 355 | 12-ø28 | ||||||||||||
| 300 | 12 | 78 | 293 | 236 | 24 | 40 | F14 | 140 | 4-ø18 | 431.8 | 12-ø26 | 400 | 12-ø23 | 410 | 12-ø28 | ||||||||||||
| 350 | 14 | 78 | 335 | 263 | 27 | 40 | F14 | 140 | 4-ø18 | 476.3 | 12-x29 | 46 | 16-ø22 | 470 | 16-ø26 | ||||||||||||
| 400 | 16 | 102 | 365 | 303 | 27 | 50 | F14 | 140 | 4-ø18 | 539.8 | 16-×29 | 515 | 16-×26 | 525 | 16-ø30 | ||||||||||||
| 450 | 18 | 114 | 422 | 327 | 32 | 50 | F14 | 140 | 4-x18 | 577.9 | 16-x32 | 565 | 20-ø26 | 585 | 20-ø30 | ||||||||||||
| 500 | 20 | 127 | 453 | 366 | 32 | 60 | F16 | 165 | 4-ø22 | 635 | 20-ø32 | 620 | 20-ø26 | 650 | 20-Ø33 | ||||||||||||
| 600 | 24 | 154 | 531 | 426 | 40 | 70 | F25 | 254 | 8-ø18 | 749.3 | 20-ø35 | 725 | 20-ø30 | 770 | 20-ø36 | ||||||||||||
