Full Lug Butterfly Valve
Product Description
| Specification | |||||||||||
| Nominal Pressure | 1.6 | MPa | |||||||||
| Shell Test Pressure(Hydraulic) | 2.4 | ||||||||||
| Seal Test Pressure(Hydraulic) | 1.76 | ||||||||||
| Design Tempreture | -10℃~100℃ | ||||||||||
| Applicable Media | Water,Oil,Gas | ||||||||||
| Executive Standard | |||||||||||
| Design &Manufacture | EN593 | ||||||||||
| Face to Face | EN558 | ||||||||||
| End Flanage | EN1092-1 PN16 | ||||||||||
| Inspection &Test | EN12266-1 | ||||||||||

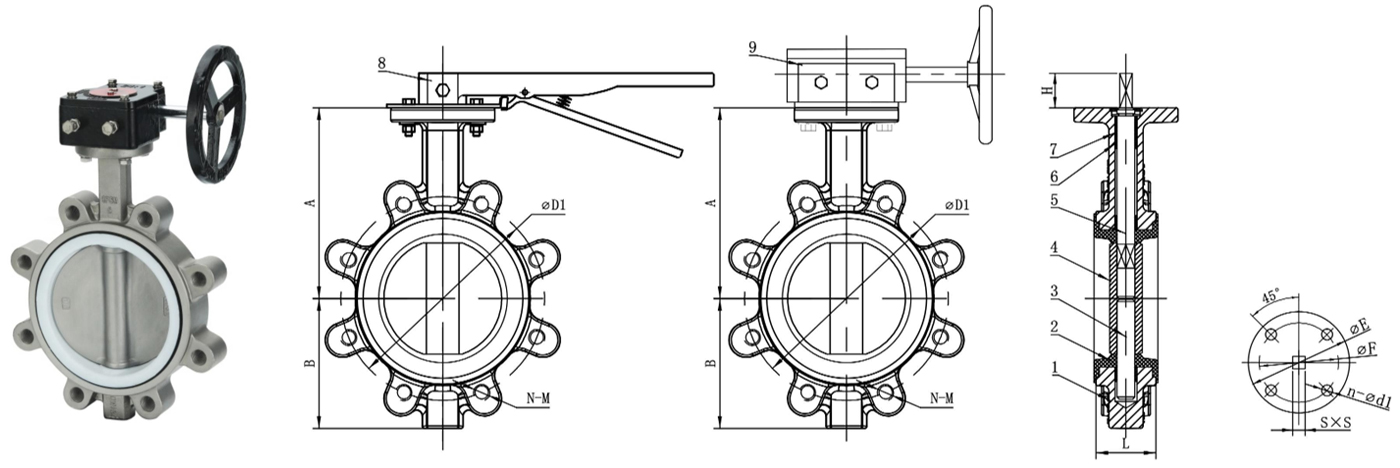

| 9 | Wormgear | DI | ||||||||
| 8 | Lever | DI | ||||||||
| 7 | 0 ring | EPDM | ||||||||
| 6 | Bushing | Polymer | ||||||||
| 5 | Upper shaft | SS410/SS431/SS316 | ||||||||
| 4 | Disc | CF8/CF8M/CF8+PTFE | ||||||||
| 3 | Bottom shaft | SS410/SS431/SS316 | ||||||||
| 2 | Seat | PTFE/EPDM/NBR/VITON | ||||||||
| 1 | Body | CF8/CF8M | ||||||||
| NO | Name | Material | Remarks | |||||||
Main Dimensions
| Size | L | A | B | S | H | ISO5211 | PN10 | PN16 | 150LB | JIS10K | |||||||||||||||||||
| mm | in | Top flange | øE | øF | n-ød1 | øD1 | N-M | øD1 | N-M | øD1 | N-M | øD1 | N-M | ||||||||||||||||
| 50 | 2 | 42 | 131.7 | 77.2 | 9 | 25 | F05 | 65 | 50 | 4-8 | 125 | 4-M16 | 125 | 4-M16 | 120.5 | 4-5/8"-11UNC | 120 | 4-M16 | |||||||||||
| 65 | 2.5 | 45 | 138.5 | 88.2 | 9 | 25 | F05 | 65 | 50 | 4-8 | 145 | 4-M16 | 145 | 4-M16 | 139.5 | 4-5/8"-11UNC | 140 | 4-M16 | |||||||||||
| 80 | 3 | 45 | 154.5 | 101.5 | 9 | 25 | F05 | 65 | 50 | 4-8 | 160 | 8-M16 | 160 | 8-M16 | 152.5 | 4-5/8"-11UNC | 150 | 8-M16 | |||||||||||
| 100 | 4 | 52 | 168.5 | 114.8 | 11 | 28 | F07 | 90 | 70 | 4-10 | 180 | 8-M16 | 180 | 8-M16 | 190.5 | 8-5/8"-11UNC | 175 | 8-M16 | |||||||||||
| 125 | 5 | 55 | 182.5 | 125.0 | 14 | 28 | F07 | 90 | 70 | 4-10 | 210 | 8-M16 | 210 | 8-M16 | 215.9 | 8-3/4"-10UNC | 210 | 8-M20 | |||||||||||
| 150 | 6 | 55 | 195.2 | 142.0 | 14 | 28 | F07 | 90 | 70 | 4-10 | 240 | 8-M20 | 240 | 8-M20 | 241.3 | 8-3/4"-10UNC | 240 | 8-M20 | |||||||||||
| 200 | 8 | 60 | 235.0 | 172.0 | 17 | 35 | F10 | 125 | 102 | 4-12 | 295 | 8-M20 | 295 | 12-M20 | 298.5 | 8-3/4"-10UNC | 290 | 12-M20 | |||||||||||
| 250 | 10 | 67 | 267.4 | 200.8 | 22 | 40 | F10 | 125 | 102 | 4-12 | 350 | 12-M20 | 355 | 12-M24 | 362.0 | 12-7/8"-9UNC | 355 | 12-M22 | |||||||||||
| 300 | 12 | 77 | 307.3 | 238.2 | 22 | 40 | F10 | 125 | 102 | 4-12 | 400 | 12-M20 | 410 | 12-M24 | 431.8 | 12-7/8"-9UNC | 400 | 16-M22 | |||||||||||
| 350 | 14 | 77 | 327 | 268 | 22 | 40 | F10 | 125 | 102 | 4-12 | 460 | 16-M20 | 470 | 16-M24 | 476.3 | 12-1"-8UNC | 445 | 16-M22 | |||||||||||
| 400 | 16 | 86 | 400 | 304 | 27 | 50 | F14 | 175 | 140 | 4-18 | 515 | 16-M24 | 525 | 16-M27 | 539.8 | 16-1"-8UNC | 510 | 16-M24 | |||||||||||
| 450 | 18 | 102 | 411 | 337 | 27 | 50 | F14 | 175 | 140 | 4-18 | 565 | 20-M24 | 585 | 20-M27 | 577.9 | 16-11/8"-7UNC | 565 | 20-M24 | |||||||||||
| 500 | 20 | 127 | 460 | 390 | 32 | 65 | F14 | 175 | 140 | 4-18 | 620 | 20-M24 | 650 | 20-M30 | 635 | 20-11/8"-7UNC | 620 | 20-M24 | |||||||||||
| 600 | 24 | 154 | 523 | 442 | 36 | 70 | F16 | 210 | 165 | 4-22 | 725 | 20-M27 | 770 | 20-M33 | 749.3 | 20-11/4"-7UNC | 730 | 24-M30 | |||||||||||
