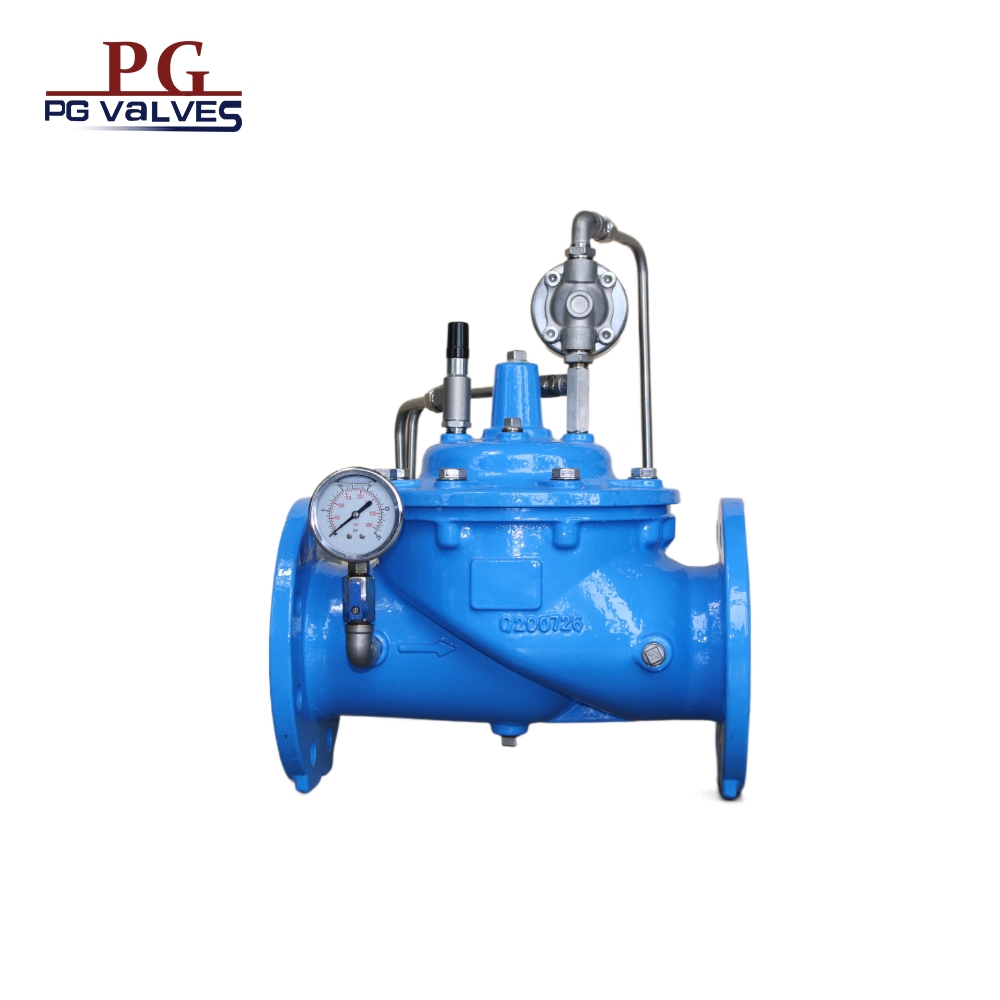

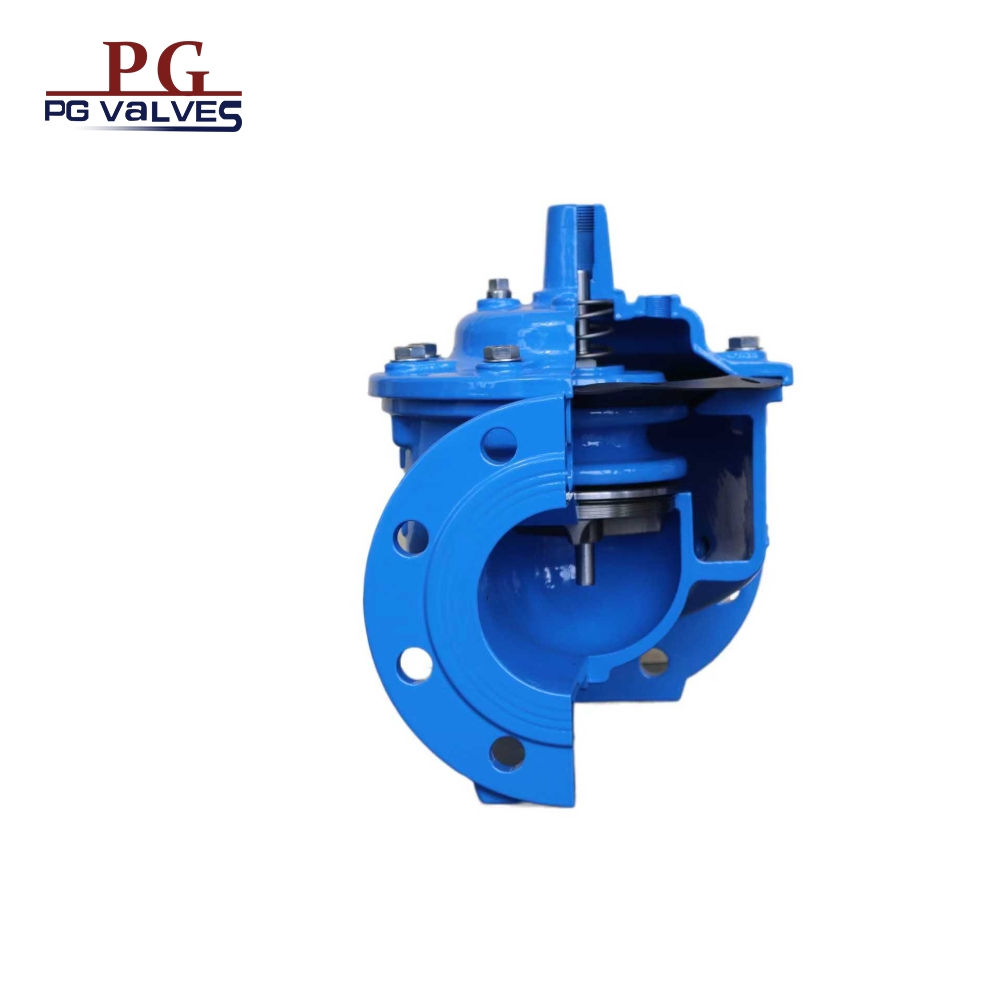

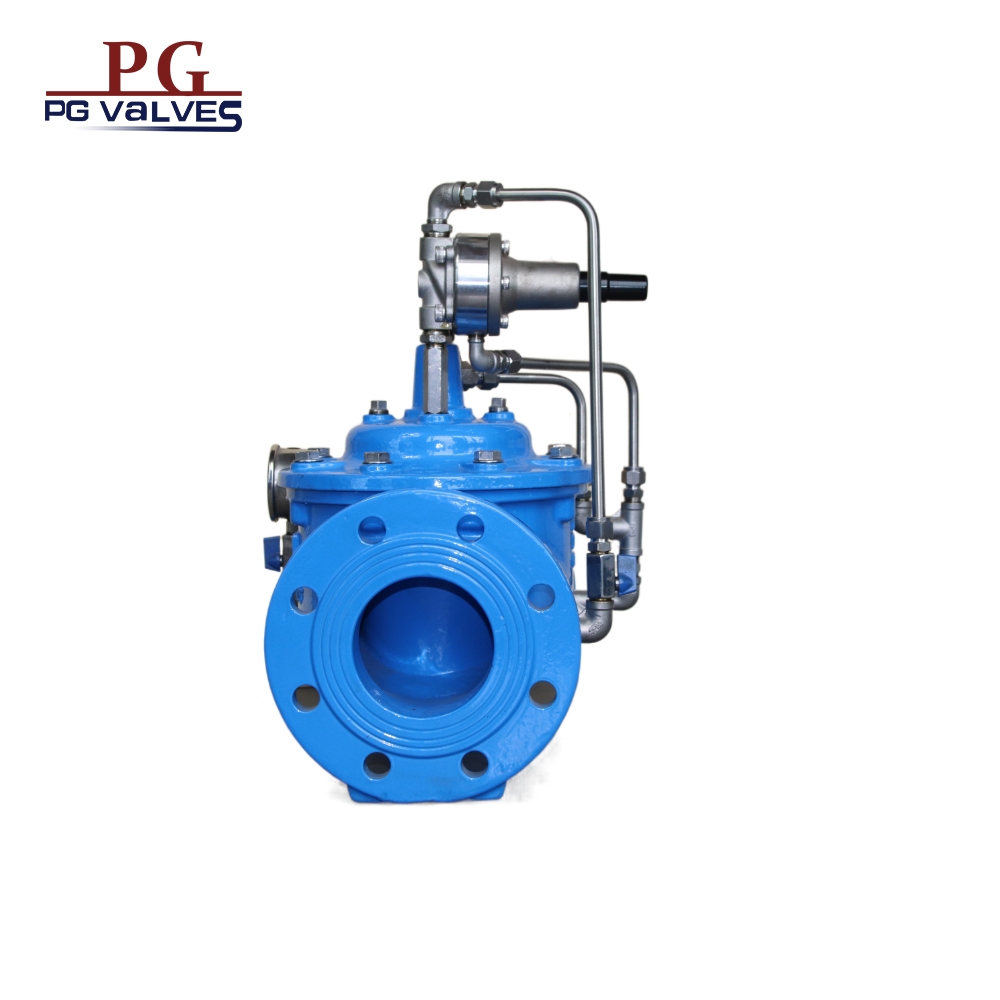

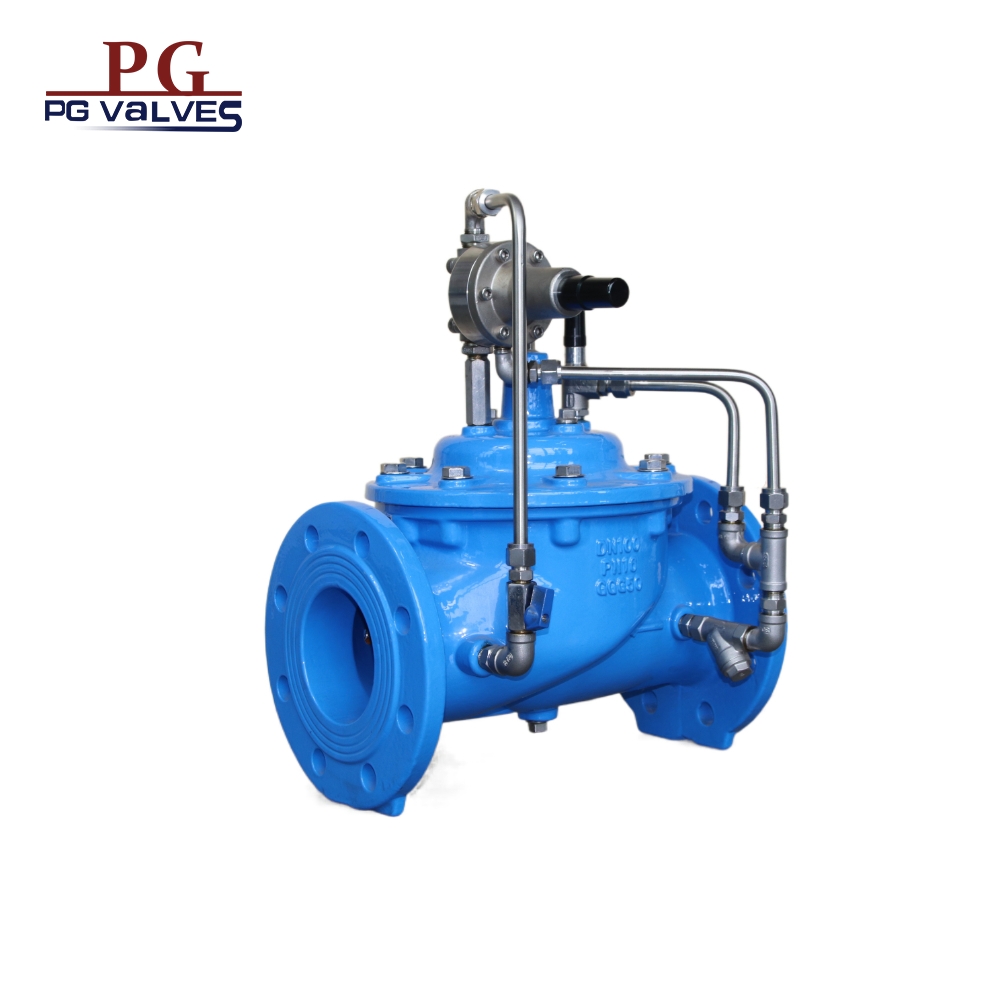

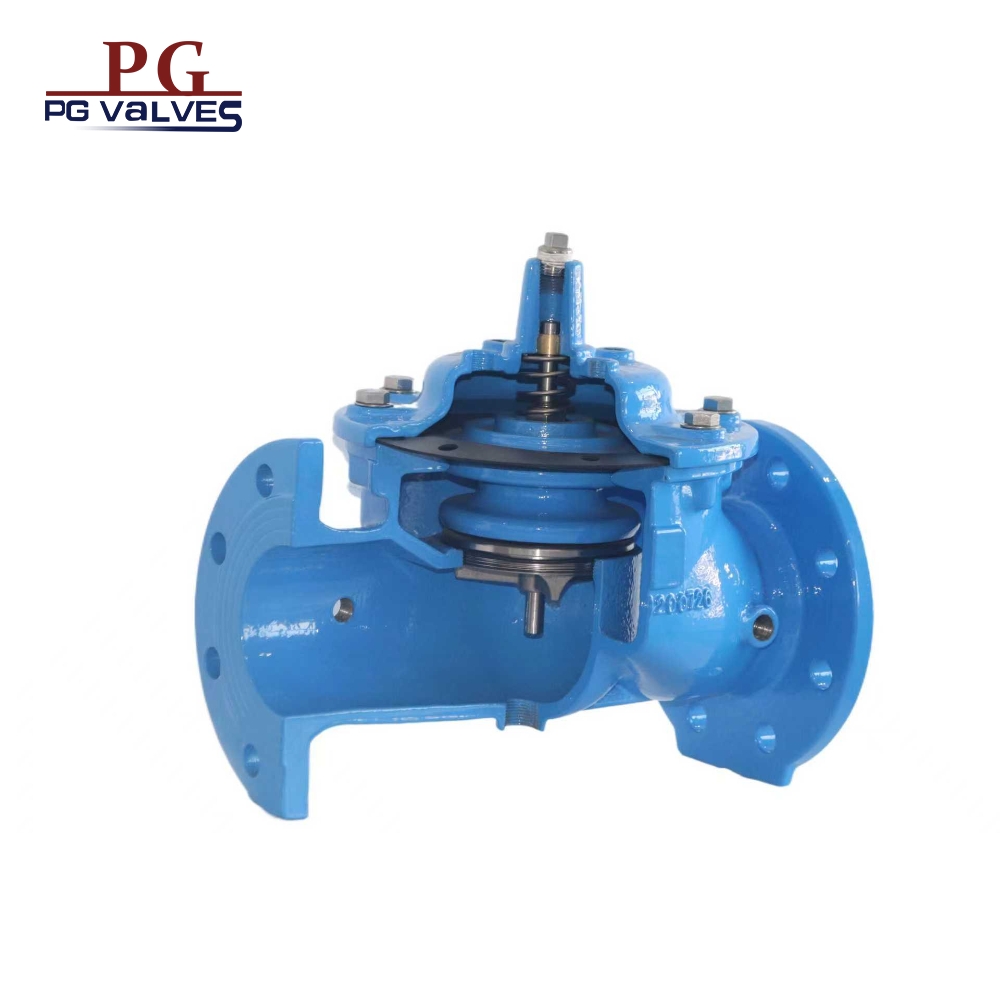

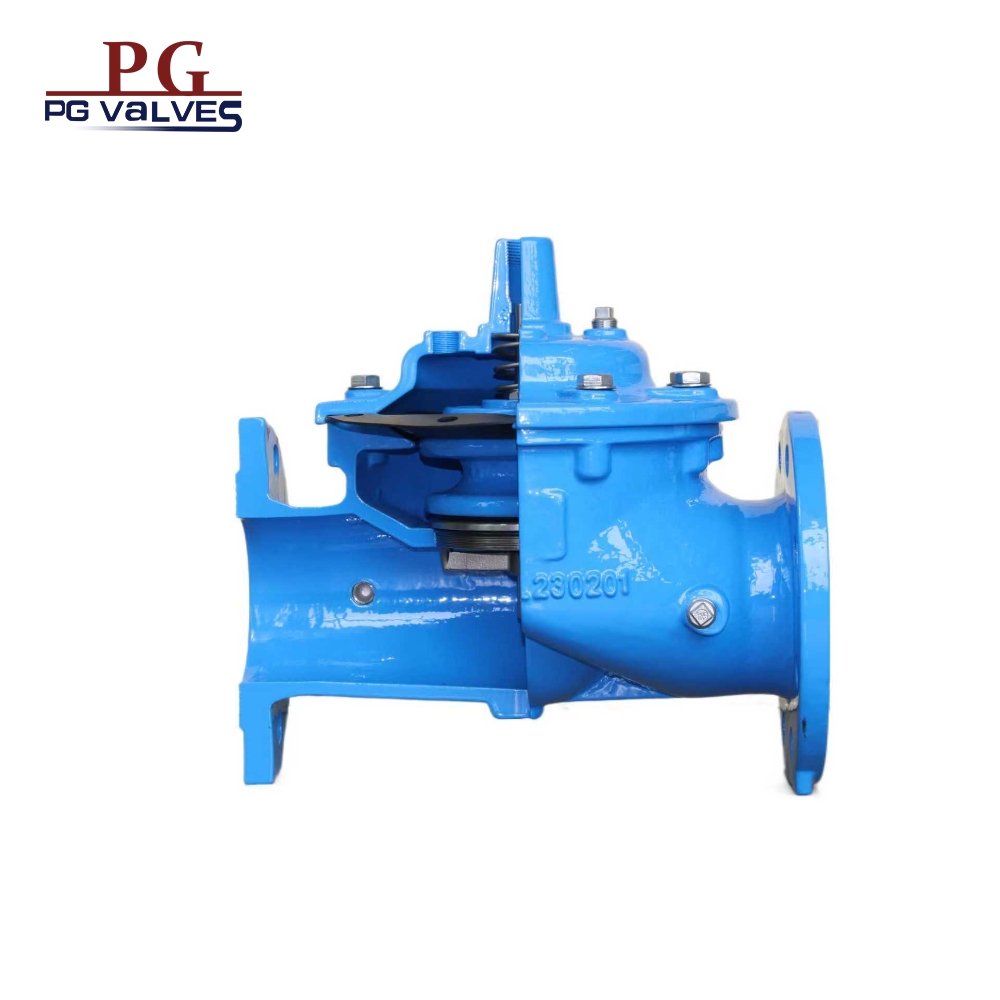

Product Description
DN50-300
| No. | Description | Material | Standard | |||||
| 1 | Body | Ductlie Iron | GJS 500-7 | |||||
| 2 | Seat | Stainless Steel | AISI 304/316 | |||||
| 3 | O-ring | Rubberr | NBR | |||||
| 4 | O-ring | Rubber | NBR | |||||
| 5 | Bolt | Stainless Steel | A2/A4 | |||||
| 6 | Washer | Stainless Steel | A2/A4 | |||||
| 7 | Bonnet | Ductile Iron | GJS 500-7 | |||||
| 8 | Bush | Brass | C61900 | |||||
| 9 | Spring | Stainless Steel | AISI 304/316 | |||||
| 10 | Caulking Nut | Stainless Steel | A4 | |||||
| 11 | Diaphragm | Nylon Reinforced Rubberr |
EPDM+Nylon Fabric |
|||||
| 12 | Fixing holder | Ductlie Iron | GJS 500-7 | |||||
| 13 | Disc Holder | Ductlie Iron | GJS 500-7 | |||||
| 14 | Seal | Rubber | EPDM | |||||
| 15 | Seat Retainer | Stainless Steel | AISI 304/316 | |||||
| 16 | Stem | Stainless Steel | AISI 304/316 | |||||
| 17 | Plug | Stainless Steel | AISI 304/316 | |||||
| 18 | Screw | Stainless Steel | A2/A4 | |||||
| 19 | Plug | Stainless Steel | A2/A4 | |||||
| 20 | Washer | Stainless Steel | A2/A4 | |||||
DN400-800
| No. | Description | Material | Standard | |||
| 1 | Body | Ductlie Iron | GJS 500-7 | |||
| 2 | Seat | Stainless Steel | AISI 304/316 | |||
| 3 | Screw | Stainless Steel | A2/A4 | |||
| 4 | Screw | Stainless Steel | A2/A4 | |||
| 5 | Screw | Stainless Steel | A2/A4 | |||
| 6 | Spring | Stainless Steel | AISI 304/316 | |||
| 7 | Bonnet | Ductile Iron | GJS 500-7 | |||
| 8 | Bush | Brass | C61900 | |||
| 9 | O-ring | Rubber | NBR | |||
| 10 | Fix Washer | Brass | C61900 | |||
| 11 | Diaphragm | Nylon Reinforced Rubber |
EPDM+Nylon Fabric |
|||
| 12 | Eye Bolts | Carbon Steel | 1040 | |||
| 13 | Fixing Holder | Ductlie Iron | GJS 500-7 | |||
| 14 | Disc Holder | Ductlie Iron | GJS 500-7 | |||
| 15 | Seal | Rubber | EPDM | |||
| 16 | Seal Retainer | Ductile Iron | GJS 500-7 | |||
| 17 | Stem | Stainless Steel | AISI 304/316 | |||
| 18 | Plug | Stainless Steel | AISI 304/316 | |||
| 19 | O-ring | Rubber | NBR | |||
| 20 | Cap | Ductlie Iron | GJS 500-7 | |||
| 21 | Plug | Stainless Steel | AISI 304/316 | |||
| 22 | Screw | Stainless Steel | A2/A4 | |||
| 23 | O-ring | Rubber | NBR | |||
| 24 | Screw | Stainless Steel | A2/A4 | |||
Main Dimensions
DN50-300
| DN | L | H | ØD | ØK | N-Ød | ØB | ||||||||
| PN10 | PN16 | PN25 | PN10 | PN16 | PN25 | PN10 | PN16 | PN25 | PN10 | PN16 | PN25 | |||
| 50 | 230 | 177 | 165 | 165 | 165 | 125 | 125 | 125 | 4-Ø19 | 4-Ø19 | 4-Ø19 | Ø99 | Ø99 | Ø99 |
| 65 | 290 | 202 | 185 | 185 | 185 | 145 | 145 | 145 | 4-Ø19 | 4-Ø19 | 8-Ø19 | Ø118 | Ø118 | Ø118 |
| 80 | 310 | 219 | 200 | 200 | 200 | 160 | 160 | 160 | 8-Ø19 | 8-Ø19 | 8-Ø19 | Ø132 | Ø132 | Ø132 |
| 100 | 350 | 243 | 220 | 220 | 235 | 180 | 180 | 190 | 8-Ø19 | 8-Ø19 | 8-Ø23 | Ø156 | Ø156 | Ø156 |
| *125 | 400 | 243 | 250 | 250 | 270 | 210 | 210 | 220 | 8-Ø19 | 8-Ø19 | 8-Ø28 | Ø156 | Ø156 | Ø156 |
| 150 | 480 | 333 | 285 | 285 | 300 | 240 | 240 | 250 | 8-Ø23 | 8-Ø23 | 8-Ø28 | Ø211 | Ø211 | Ø211 |
| 200 | 600 | 428 | 340 | 340 | 360 | 295 | 295 | 310 | 8-Ø23 | 12-Ø23 | 12-Ø28 | Ø266 | Ø266 | Ø274 |
| 250 | 730 | 478 | 405 | 405 | 425 | 350 | 355 | 370 | 12-Ø23 | 12-Ø28 | 12-Ø31 | Ø319 | Ø319 | Ø330 |
| 300 | 850 | 538 | 460 | 460 | 485 | 400 | 410 | 430 | 12-Ø23 | 12-Ø28 | 16-Ø31 | Ø370 | Ø370 | Ø389 |
DN400-800
| DN | L | H | ØD | ØK | N-Od | OB | ||||||
| PN10 | PN16 | PN10 | PN16 | PN10 | PN16 | PN10 | PN16 | |||||
| 400 | 1100 | 710 | 580 | 580 | 515 | 525 | 16-Ø28 | 16-Ø31 | 480 | 480 | ||
| *450 | 1200 | 720 | 640 | 640 | 565 | 585 | 20-028 | 20-031 | 530 | 548 | ||
| 500 | 1250 | 822 | 715 | 715 | 620 | 650 | 20-Ø28 | 20-034 | 582 | 609 | ||
| 600 | 1450 | 885 | 840 | 840 | 725 | 770 | 20-Ø31 | 20-037 | 682 | 720 | ||
| *700 | 1650 | 910 | 910 | 910 | 840 | 840 | 24-031 | 24-Q37 | 682 | 720 | ||
| 800 | 1850 | 1260 | 1025 | 1025 | 950 | 950 | 24-Q34 | 24-Ø40 | 901 | 901 | ||
Note: 1. *DN450/700 use same internal as DN400/600.
2. AISI 304 factory standard material.consult factory for AISI 316 material.
