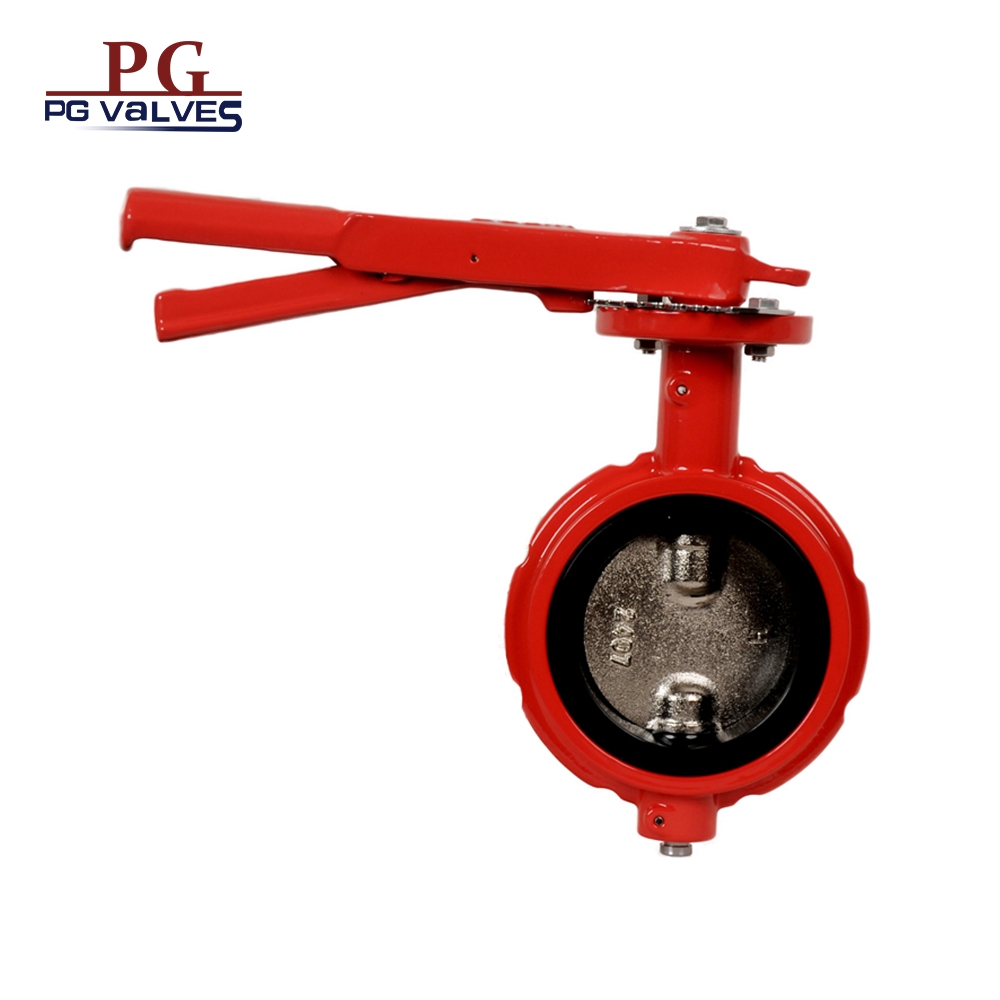

Product Description
| 300 | 238 | 300 | 32.5 | 31.8 | 409.6 | 127 | 152.4 | 14.3 | 19.1 | 77 | 292 |
| 250 | 199 | 285 | 32.5 | 28.6 | 339.7 | 127 | 152.4 | 14.3 | 15.9 | 66 | 241 |
| 200 | 166 | 240 | 32.5 | 22.2 | 279.4 | 127 | 152.4 | 14.3 | 15.9 | 60 | 193 |
| 150 | 136 | 170 | 32.5 | 19.1 | 222.3 | 82.6 | 101.6 | 11.1 | 12.7 | 56 | 145 |
| 125 | 123 | 156 | 32.5 | 19.1 | 196.9 | 82.6 | 101.6 | 11.1 | 12.7 | 54 | 111 |
| 100 | 109 | 152 | 32.5 | 15.9 | 174.6 | 82.6 | 101.6 | 11.1 | 11.1 | 52 | 90 |
| 80 | 93 | 125 | 26.2 | 12.7 | 136.5 | 82.6 | 101.6 | 11.1 | 9.5 | 45 | 65 |
| 65 | 85 | 117 | 26.2 | 12.7 | 123.9 | 82.6 | 101.6 | 11.1 | 9.5 | 45 | 47 |
| 50 | 76 | 100 | 26.2 | 12.7 | 104.8 | 82.6 | 101.6 | 11.1 | 9.5 | 42 | 32 |
| Specification | A | B | C | φD | φE | φJ | φH | 4-φK | W | L | φT |
| 6 | O ring | NBR |
| 5 | Pin | Q235 |
| 4 | Seat | NBR |
| 3 | Disc | DI |
| 2 | Stem | SS410 |
| 1 | Body | DI |
| Name | Material |
